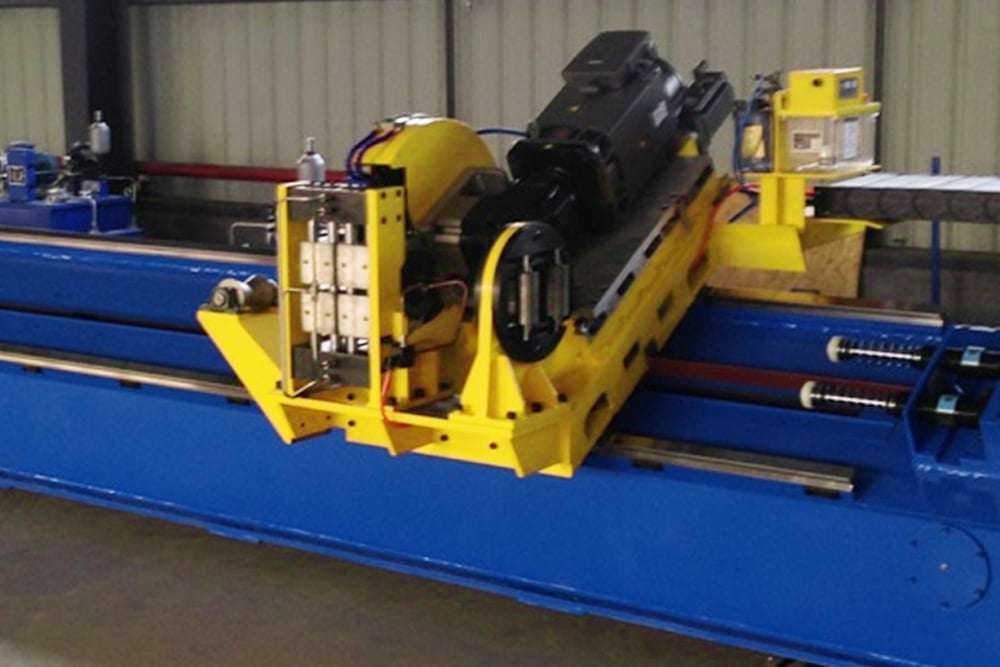

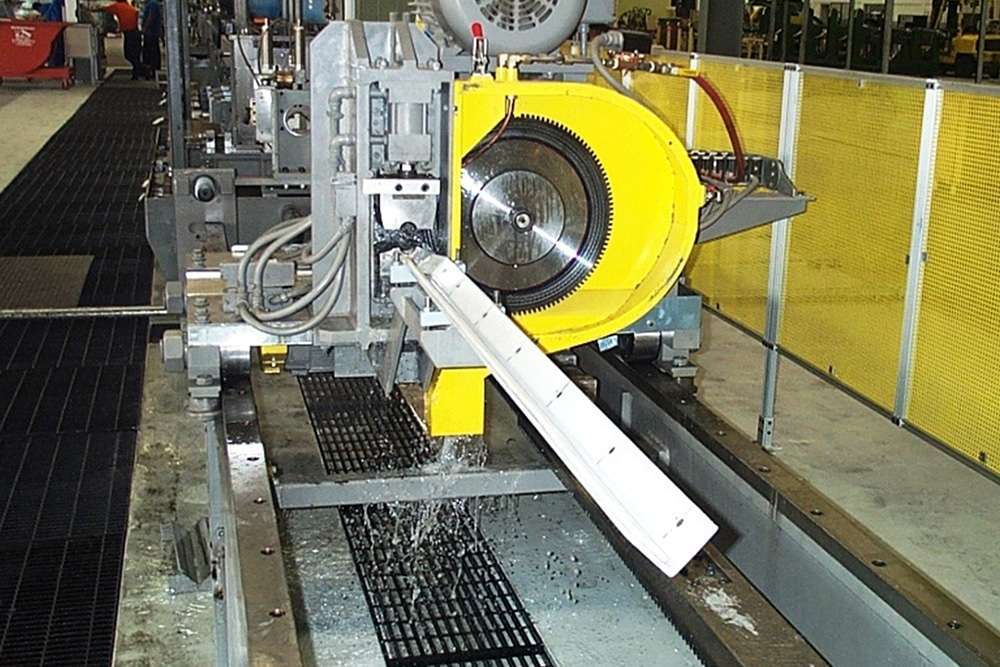

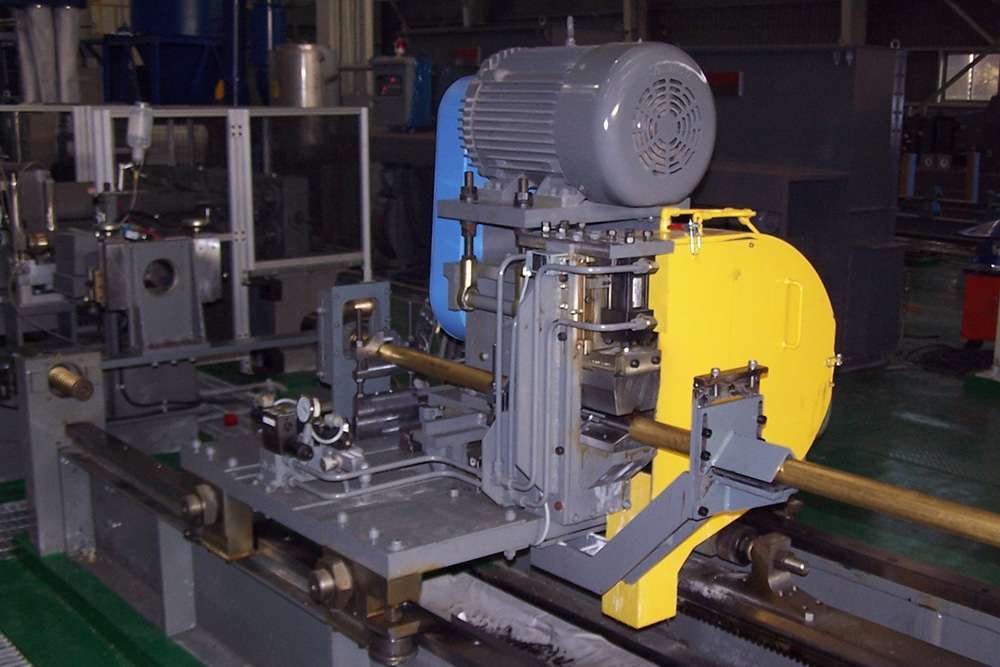

CS-090 Cold Saw
The CS-090 cold saw is a high-speed machine for burr free tube measuring up to 3.5 inches in diameter. This cold saw can provide cut lengths over a wide variety of mill speeds with an unrivaled degree of accuracy and has been tuned to allow the moving carriage to operate with a very high degree of precision. An AC induction motor accelerates the carriage and a ball screw powered by an AC servo motor drives the spindle forward into the product. The AC induction motor is controlled by a variable frequency drive which is interfaced with a real time operating system. This system interfaces the inputs and outputs of various feedback and devices to achieve control of the machine and its peripherals. A control console is provided to allow the operator to input data pertaining to the production schedule which will allow the machine to run with little or no operator interaction.
Product Details
Product Images
