Dura-Line® Furnaces
Dura-Line® induction melting furnaces are designed for rugged use and high-power density melting.
Dura-Line® induction melting furnaces are ideal for when you want big furnace features in a midsize induction furnace melter. These efficient and reliable induction melting furnaces offer high operational efficiency with a wide choice of capacities in a budget-friendly package.
Dura-Line® induction melting furnaces have a body constructed of heavy, cast refractory top and bottom sections with stainless steel reinforcement, providing a strong and rigid support for the heavy-duty, copper power coil and the working lining. The full-section cast metal side plates complete the structure and provide mounting support for the tilting trunnion and hydraulic tilting cylinders. Large diameter vertical and horizontal stainless steel tie rods ensure complete structural integrity.

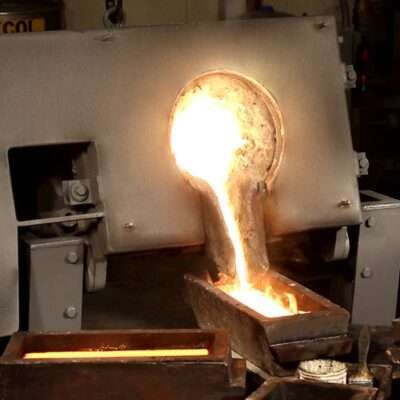

The same construction is used for either hoist or hydraulic tilting furnaces, providing single-trunnion action and “nose-tilt” pouring. For front exiting leads, a metallic splash plate across the front of the furnace provides full protection to the coil during melting and pouring and is easily removed to connect the water-cooled leads and for maintenance. Hydraulically operated furnaces are provided with stanchions that protect the cylinders and hydraulic piping.
Product Details
Product Images
