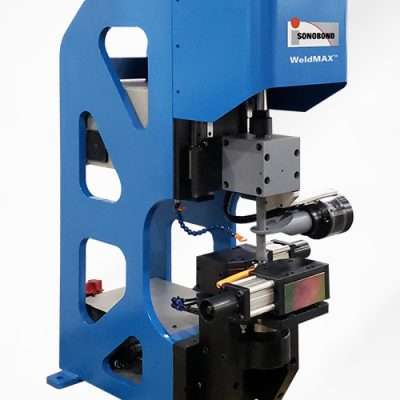

WeldMAX™ Ultrasonic Spot Welder

Sonobond WeldMAX® Model MH-15100 is the industry’s most powerful ultrasonic spot welder, delivering up to 10,000 watts of output power to weld a variety of metal assemblies.

The model MH-15100 produces ultra-reliable, solid-state metallurgical bonds without the use of heat, current, fluxes, filler materials, or other consumables. It creates a welded joint that is strong and highly conductive. And while the welding rate depends on the thickness and type of materials being joined, most operations are completed in less than 3 seconds.

Product Details

Features

Outputs 10,000 watts of power to weld nonferrous and dissimilar metal assemblies, including copper, aluminum, nickel
Produces ultra-reliable, solid-state metallurgical bonds without external heat or current
Requires no fluxes, filler material, or other consumables
Unique Wedge-Reed coupling system assures precise, dependable welds and facilitates special tooling, fixtures, rotary tables, or feeders
Heat-treated, tool steel Taper Lock Tips perform up to 50,000 welds and are easily removed and replaced
Minimal operating and training costs
Little or no pre-cleaning required
Energy efficient
Can be incorporated into automated assembly equipment
Automatic frequency control for stable operation

Tech Specs

Component	Welding Head
Model	MH-15100
Controls	Contact Sales Associate
Acoustics	Unique Wedge-Reed and Contra- Resonant anvil system for high clamp force, low amplitude welding of metals
Air	Clean, dry air at 80-100 psi
Construction	NEMA 12 panel enclosure with modular, easily removable sub-assemblies
Size (approx.)	48″ high, 20″ wide, 34″ deep
Weight (approx.)	1,700 lbs.
Warranty	One full year against defects in material and workmanship

Component	Power Supply
Model	FC-15100
Output Power	0 to 10,000 watt into 50 Ohm load
Frequency Range	14.5 kHz to 16 kHz
Input Power	480 volts, 50/60 Hz, 3 phase, 20 amps
Construction	NEMA 12 panel enclosure with modular, easily removable sub-assemblies
Size (approx.)	42″ high, 24″ wide, 12″ deep mounted on 12″ legs
Weight (approx.)	150 lbs.

Applications

The MH-15100 consists of a solid-state frequency converter, a welding head, with Sonobond’s unique Wedge-Reed system, and an easily removable and replaceable Taper Lock Tip which vibrates to ultrasonically spot weld the materials. Sonobond custom designs tooling to meet each customer’s specific needs.

The Sonobond WeldMAX Model MH-15100 ultrasonic welder is used for heavy gage wire to wire, or wire to terminal assembly, electrical bus bar fabrication, and other electronic/electrical assemblies even tinned stranded wire assemblies.

Theory of Operation

The WeldMAX MH-15100 uses Sonobond’s unique Wedge-Reed coupling system of high vibratory force and low amplitude to ensure precise, dependable welds. The unit directs high frequency, ultrasonic energy via a welding tip to the surface between the metals to be welded. The vibratory energy disperses the oxides and surface films between the workpieces and creates a true metallurgical weld without melting the materials.
