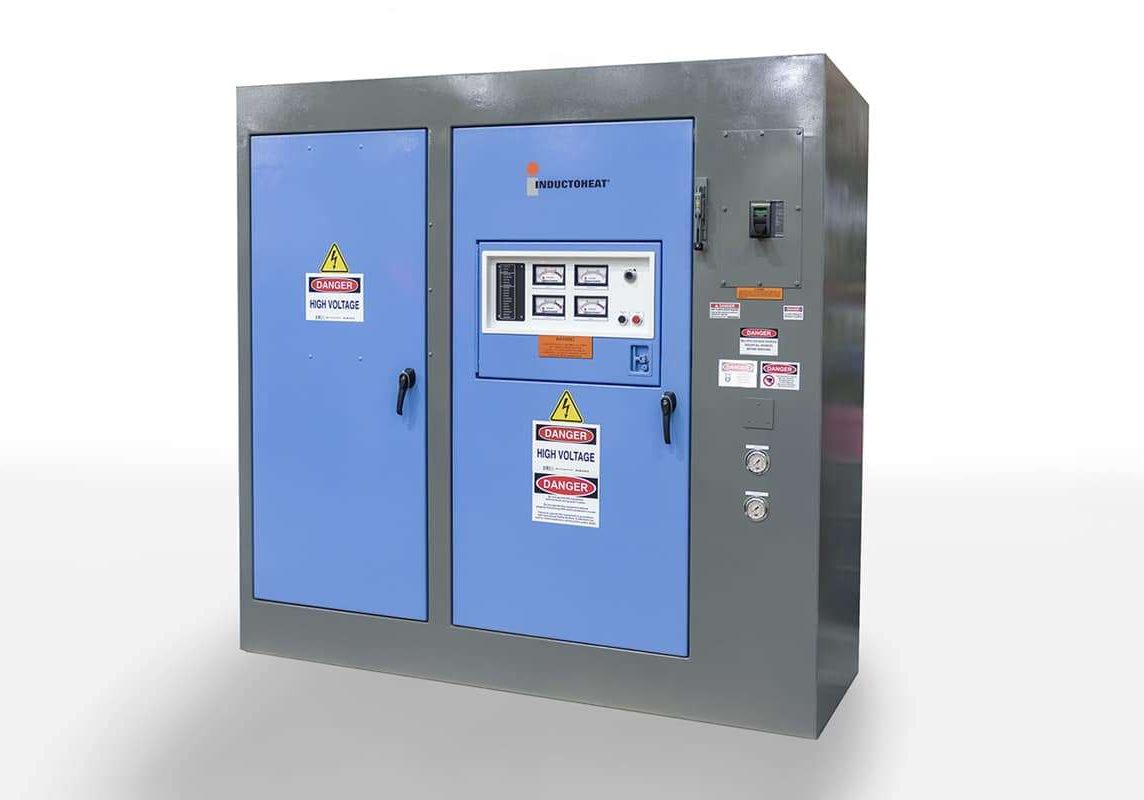

Statipower® SP5 & Solid State Induction Heating Power Supply
Statipower® SP5 power supplies are solid state, water-cooled systems designed for case hardening, through hardening, annealing, mass heating, and many other applications. Power and frequency combinations from 10 to 1,300 kW/1 to 25 kHz are available in single and dual frequency models.
“Bullet-Proof” Circuitry For Increased Up-Time:
All Statipower® power supply systems incorporate “Bullet-Proof” circuitry to eliminate nuisance shutdowns and restarts caused by voltage transients, ground faults and shorted or arcing loads. Because load current is not used for commutation, equipment can be operated with the output shorted for easy troubleshooting. Solid state accuracy assures output power regulation of ±1% with a line variance of up to ±10%. Reliability is further enhanced by placement of 95% of all circuitry on one control board which is accessible without entering the high voltage section of the power supply.
Reliable Design For Safety And Long-Life Performance:
Statipower® power supply units have a DC diode bridge, line choke and capacitor bank to minimize the effects of line noise and harmonic feedback. This also ensures a constant input power factor of 0.95 regardless of loading for the best possible efficiency resulting in lower electric demand charges. Other system features include an input line disconnect with UVR, output isolation transformer, differential pressure switch and temperature switches on water supply and return manifolds and resettable temperature switches on water circuits. Options include a remote meter panel and a 4 to 20 mA interface board for external control.
Product Details
Product Images
